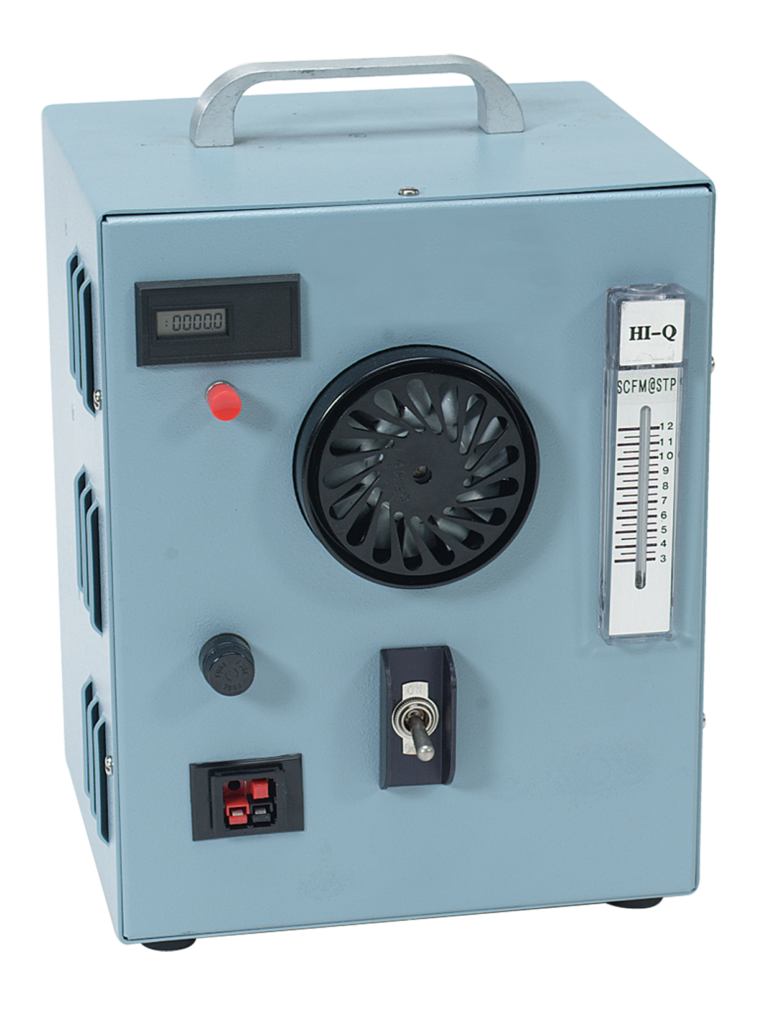

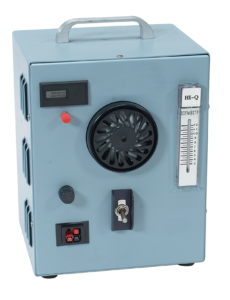

CF-24B – 12/24 VDC, Fixed Speed Air Samplers

$0.00

Description

Product Highlights

  • 12/24 VDC FIXED SPEED
  • Elapsed, Resettable Timer
  • External Battery Operated
  • Instantaneous Flow Reading
  • N.I.S.T. Traceable Calibration

Specifications

Motor/Pump: 12/24 Volt DC, 2-stage centrifugal blower. Amp Draw: 9.0@12 Volts & 14.4@24 Volts. Max VAC: 24” H2O.
Battery Cables: 8 Foot Battery Cables included.
Unit Weight: 13 lbs.
Shipping Weight: Total 14 lbs., 1 Box 11¼” x 10” x 13¼”
Unit Dimensions: CF-24B: 8” x 11.5” x 8” Painted Aluminum cabinet.
Max Flow Rate: 12 Volts DC 3.4 CFM (w/ FP2063-20, 2” Dia.)
6.5 CFM (w/ FP2063-102, 4” Dia.)
Max Flow Rate:  24 Volts DC 6.5 CFM (w/ FP2063-20, 2” Dia.)
11.5 CFM (w/ FP2063-102, 4” Dia.)
Filter Holders & Adapters: Unit includes a 1½” female straight-pipe fitting, which accepts “CF”- series holders.
Flow Calibrator: See Air Flow Calibrators
Filter Paper: See Filter Paper For Air Sampling
Filter Cartridges: See Analytical Cartridges

Description

The CF-24B, FIXED SPEED, 12/24 VDC external battery operated field unit is ideal for remote site grab sampling. An elapsed, resettable timer (with independent 5 year battery) is incorporated into the unit housing to track exact sampling duration. The throughput flow rate is dependent upon the pressure drop across the filter media and the supplied voltage (12 or 24 volts DC). The CF-24B includes a 1½” female straight pipe fitting which accepts the “CF” series filter holders. See “Air Sampling Accessories” section of this catalog for optional 12/24 Volt DC Portable Power Source (P/N: PPS-12/24-VDC).

Additional information

Model

CF-24B
