Description
Description
| Model | Cartridge Series | Dimensions | TEDA Impregnated Carbon Mesh Sizes |
|---|---|---|---|

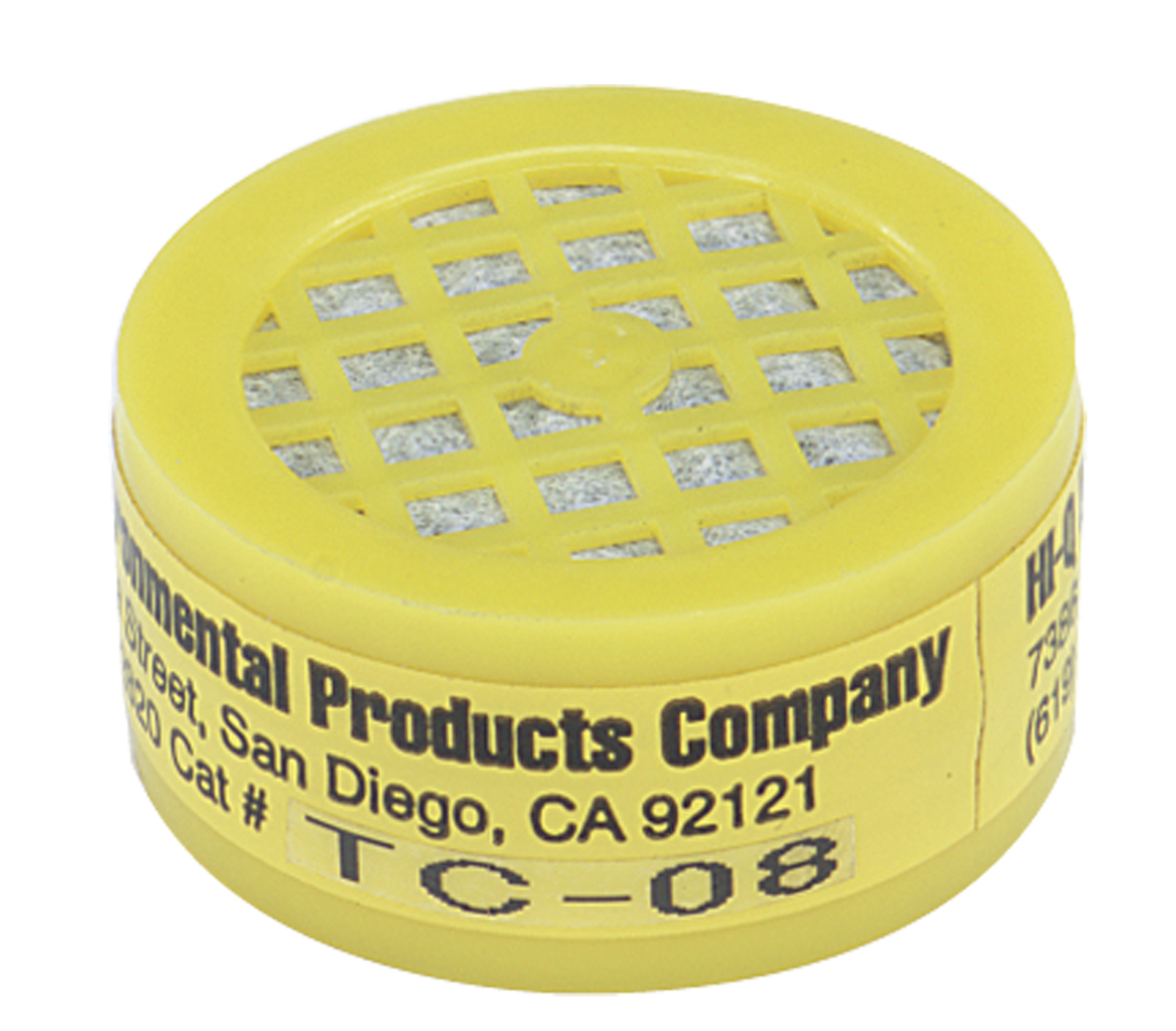

| TC-08 | TC | 1-5/8″ x 3/4″ | 8 x 16 |
| TC-12 | TC | 2.25″ x 1″ Plastic | 8 x 16 |
| TC-30 | TC | 2.25″ x 1″ Plastic | 20 x 40 |
| TC-45 | TC | 2.25″ x 1″ Plastic | 30 x 50 |
| TCAL-12 | TCAL | 2.5″ x 1″ Metal | 8 x 16 |
| TCAL-30 | TCAL | 2.5″ x 1″ Metal | 20 x 40 |
| TCAL-45 | TCAL | 2.5″ x 1″ Metal | 30 x 50 |
| TCGA-12 | TCGA | 2.5″ x 1.5″ Metal | 8 x 16 |
| TCGA-30 | TCGA | 2.5″ x 1.5″ Metal | 20 x 40 |
| TCGA-45 | TCGA | 2.5″ x 1.5″ Metal | 30 x 50 |

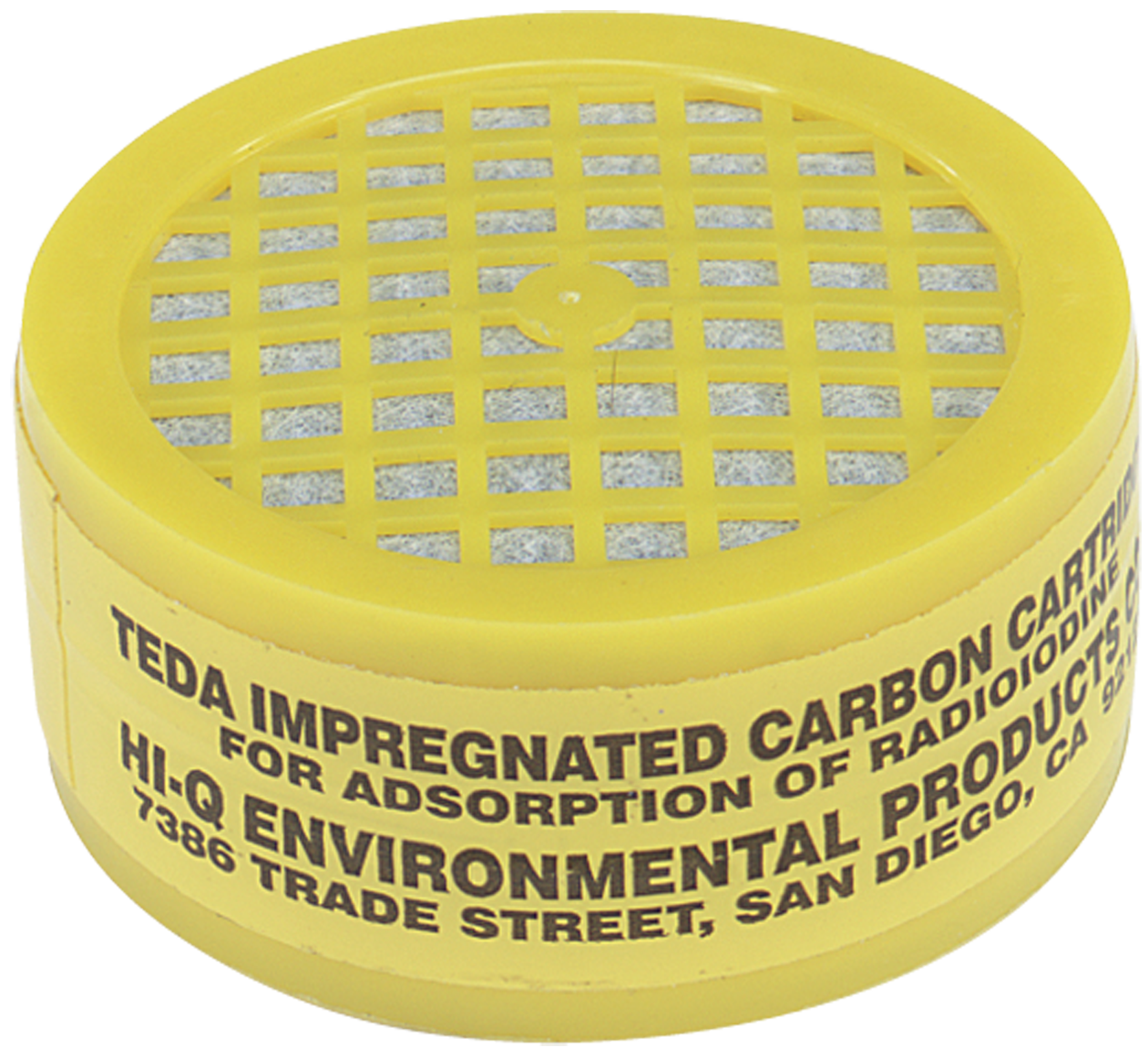

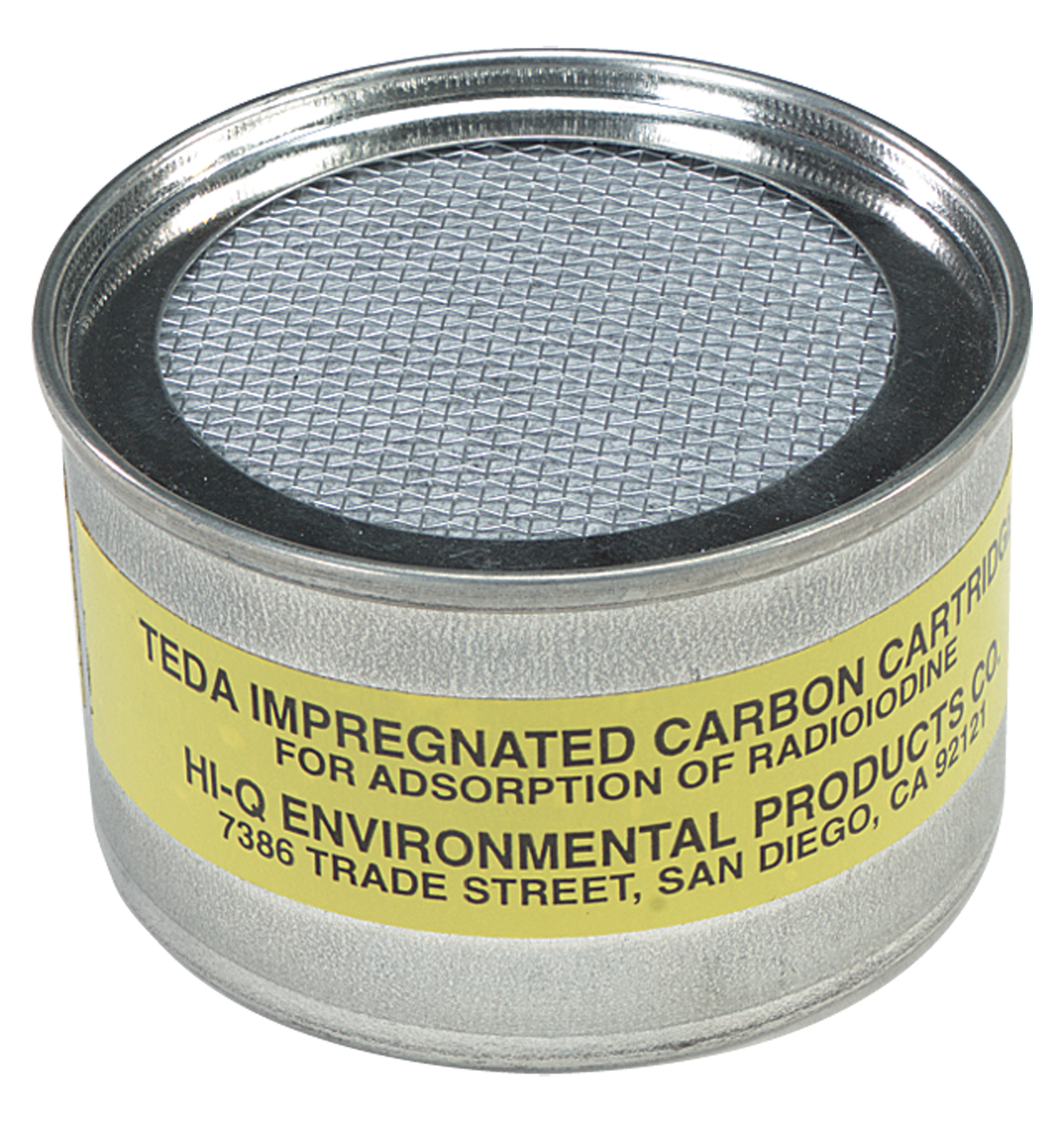

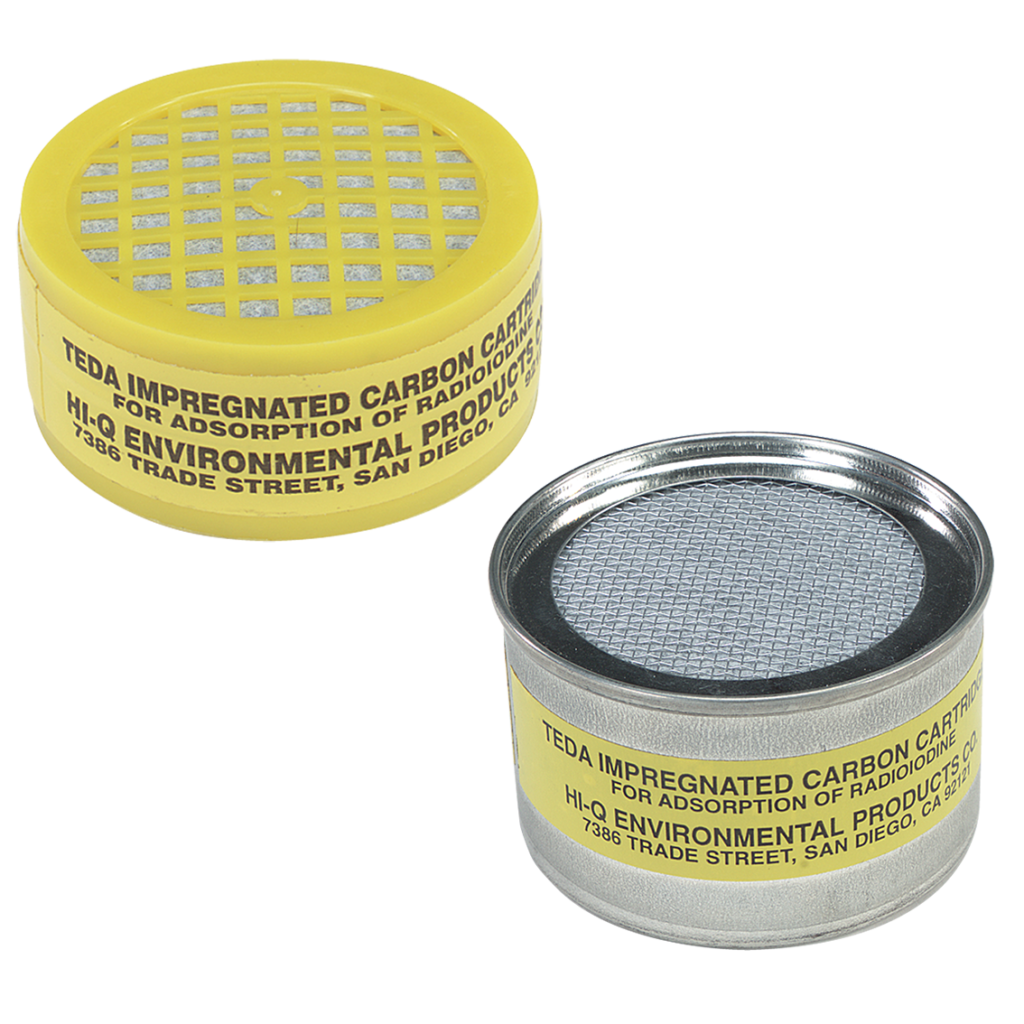

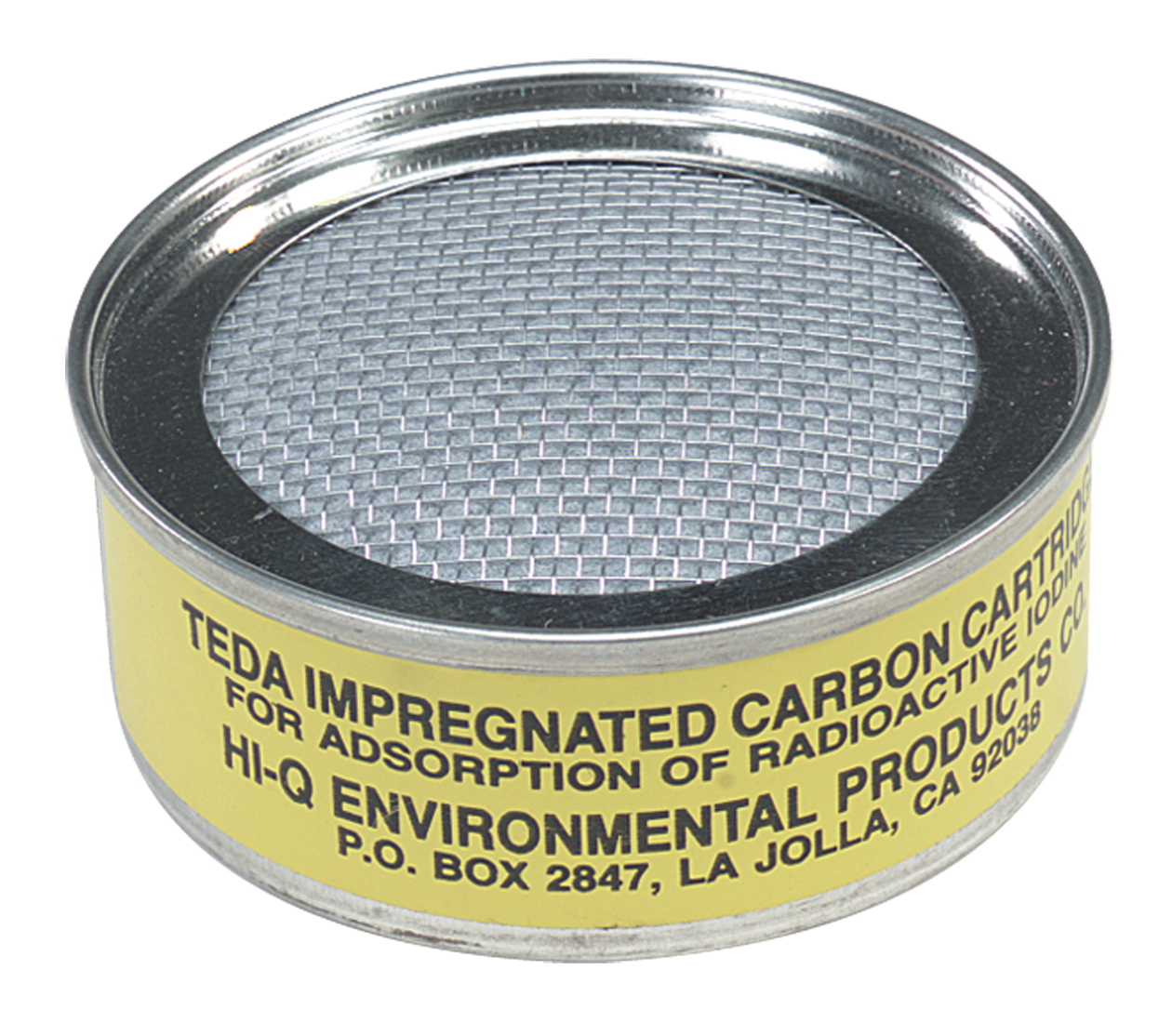

TEDA (triethylene di-amine) impregnated Carbon filter media has a high affinity for the adsorption, chelation and retention of the various species of Iodine. The HI-Q Environmental Products Company manufactures a number of configurations of activated carbon cartridges to fit almost all industry standard cartridge holders. The most common size in the industry is the 2¼” dia. x 1” thick unit. These are HI-Q’s “TC-Series” cartridges. This cartridge container is made of radiation yellow, high density polypropylene which is chemically inert, with a spun polypropylene retainer. The cartridges are easily cut open for analysis. Other popular HI-Q cartridge configurations, are the 2½” dia. x 1” (TCAL-Series), and the 2½” dia. x 1½” (TCGA-Series) metal can configuration commonly used in post accident monitors. All cartridges are heat-sealed in an airtight 6-mil polyethylene package to prevent contamination before use. The unopened package has an industry accepted ten-year shelf life. Ten cartridges are contained in each package/sleeve. Custom packaging is available with no minimum order.
