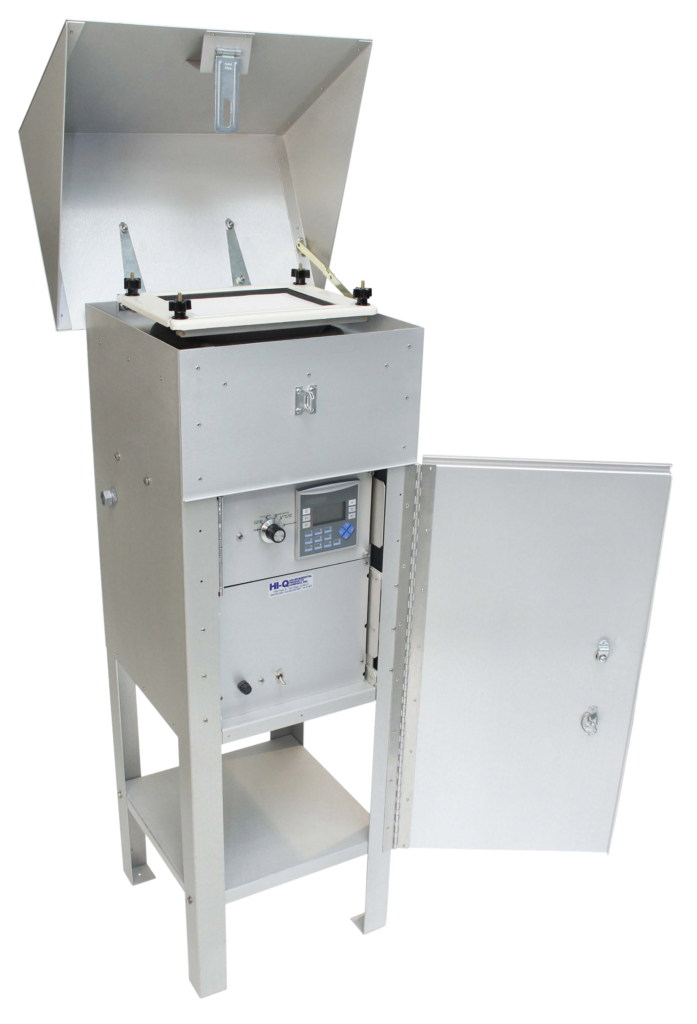

HVP-5300AFC & HVP-5200AFC

$0.00

Description

Product Highlights

  • Automatic/PID, User selectable Mass or Volumetric Flow Control & Operation
  • Networking and Communication Capabilities
  • Barometric Pressure & Temperature Display
  • Continuous Data Logging
  • Removable Micro SD card
  • User Selectable Flow Units (CFM, LPM or CMM)Auto Calibration feature
  • Programmable Timer & Total Volume Shut-Off
  • Brushless 2 or 3 Stage Blower Motor
  • For Continuous Use/Maintenance Free
  • Applicable to EPA’s 40 CFR 50, App. B
  • Applicable to EPA’s Lead Sampling Standards
  • PM-10 Adaptable
  • EPA Recommended Filter Shield Option available

Specifications

Motor/Pump: Brushless, 2 or 3 Stage Centrifugal Blower. For motor specification see product description under Replacement Blowers.
Housing: Anodized Aluminum Outdoor Shelter with lockable control panel door and filter media roof. See model # HVP-2000 for overall cabinet dimensions. Modular Cabinet Design Option Available.
Display: Illuminated, Graphic LCD Screen
Calibrated Flow Range: (HVP-5300/5200AFC) 10-50 SCFM (SCMM or SLPM unit calibration upon request)
Calibrated Flow Range: (HVP-5304/5204AFC) 2-15 SCFM (SCMM or SLPM unit calibration upon request)
Flow Totalizer: Default to Resettable Standard Cubic Feet (total volume in cubic meters or liters upon request)
Elapsed Time: Minutes and Tenths of Minutes
Unit Net Weight: 58 lbs.
Shipping Weights & Dimensions: 20” x 20” x 50” @ 55 lbs. (Box 1)
18” x 18” x 24” @ 11 lbs. (Box 2)
HVP-5300/4AFC
Power Specifications:
115 VAC, 50/60 Hz., 10 Amp, 800 Watt / Max Vacuum Capacity 85” H20
230 VAC, 50/60 Hz., 10.5 Amp, 1200 Watt / Max Vacuum Capacity 118” H20
HVP-5200/4AFC
Power Specifications:
115 VAC, 50/60Hz., 5.0 Amp, 250 Watt / Max Vacuum Capacity 49” H20
230 VAC, 50/60Hz., 4.5 Amp, 400 Watt / Max Vacuum Capacity 39” H20
Flow Calibrator: See Air Flow Calibrators
Filter Paper: See Filter Paper For Air Sampling
PM-10: See Size Selective Inlets
Options: Volumetric Flow Control, Modular Cabinet Design, Automatic Filter Shield, 8” x 10” Filter Cartridge, Data & Barcode Printer, SMS Messaging, Analog Output & more…

Description

The HVP-5000AFC-Series high volume air samplers are housed in a clear-anodized aluminum outdoor shelter. The unit incorporates a maintenance free, 2 or 3 stage centrifugal blower powered by a brushless, variable speed maintenance-free motor. Blower selection is dependent upon individual sampling environment. The speed of the motor is controlled by a programmable logic controller (PLC) that accepts an input from a mass or volumetric flow sensor mounted in the sample air flow stream. The PLC detects changes in the operator’s pre-set flow rate (in standard or actual units) due to changes in temperature, barometric pressure and pressure drop due to dust loading on the filter media. It compensates for these changes by adjusting the motor speed to maintain the pre-set flow rate. The illuminated, graphic LCD displays the operator’s Pre-Set Flow Rate, Instantaneous Flow Rate, Total Volume of Air Sampled, Elapsed Sample Time, Barometric Pressure, Ambient Temperature, Min/Max/Average values of flow rate, Barometric Pressure and Ambient Temperature. The PLC also allows for programming of custom sample on/ off time settings & pre-set total volume shut off. The HVP-5000AFC-Series samplers are programmed to log the flow rate (in actual and standard conditions), barometric pressure and temperature at user-selectable intervals to a Micro-SD card using user-settable file names directly in .csv format. The log files can be viewed using any standard spreadsheet software like MS Excel. This eliminates the need to carry a laptop to the field or install any custom software for data download. The Micro-SD card also allows for easy firmware updates without having to remove the controller or the panel. The HVP-5000AFC-Series samplers include an Auto Flow Calibration feature when used in combination with HI-Q’s D-AFC-Series air flow calibrator. The 15 point auto-calibration can be accomplished by connecting a cable between the HVP and D-AFC and pressing few buttons on the HVP panel. Manual flow calibration is still an option using any high volume air flow calibrator. A “Filter Shield” is available as an option to prevent contamination of the filter media by windblown particulate while sampler is not in use. The “Filter Shield”

Additional information

Model

HVP-5200AFC (2-Stage) (115 VAC), HVP-5200AFC/230 (2-Stage) (230 VAC), HVP-5204AFC (2-Stage) (115 VAC), HVP-5204AFC/230 (2-Stage) (230 VAC), HVP-5300AFC (3-Stage) (115 VAC), HVP-5300AFC/230 (3-Stage) (230 VAC), HVP-5304AFC (3-Stage) (115 VAC), HVP-5304AFC/230 (3-Stage) (230 VAC)
