TR-1, TR-1000B & TR-2000A – Air Sampling & Equipment Tripods

Description

TR-1 (Light Duty) TR-1000B (Medium Duty) TR-2000A (Heavy Duty)
Maximum Capacity: 12lbs 15lbs 50lbs
Maximum extended height: 64.3″ 62.0″ 70.5″
Folded length: 20″ 35″ 44″
Center column extension: 13.5 N/A N/A
Net weight: 4.5 lbs 8.5 lbs 16.5 lbs
Equipment Mounting Plate: 9″ x 10.25″ x .25″ Aluminum 9″ x 10.25″ x .25″ Aluminum 9″ x 10.25″ x .25″ Aluminum
Leg material: Aluminum Pultruded Fiberglass Pultruded Fiberglass

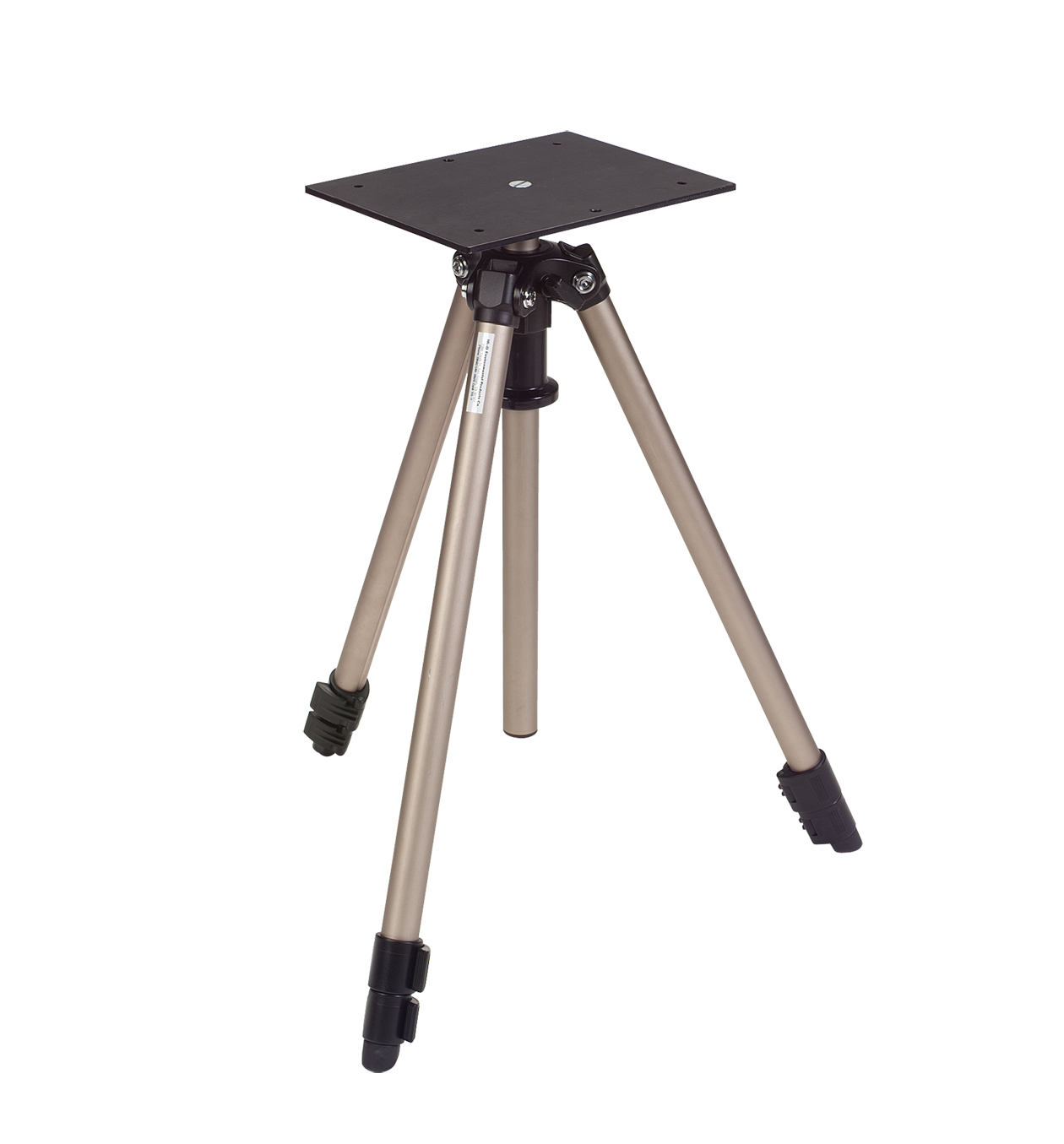

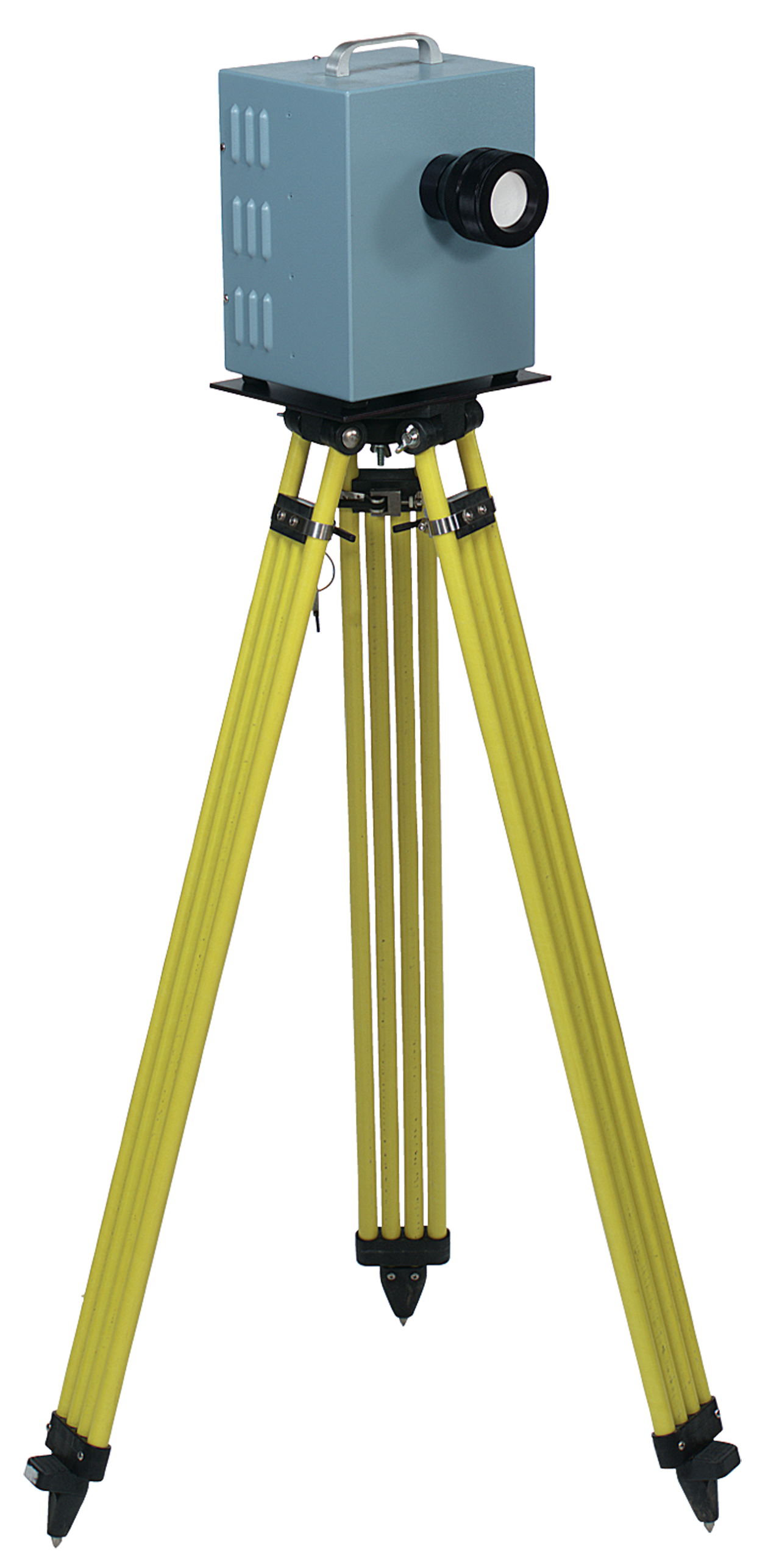

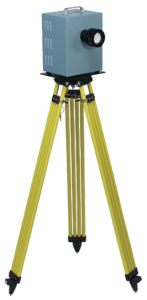

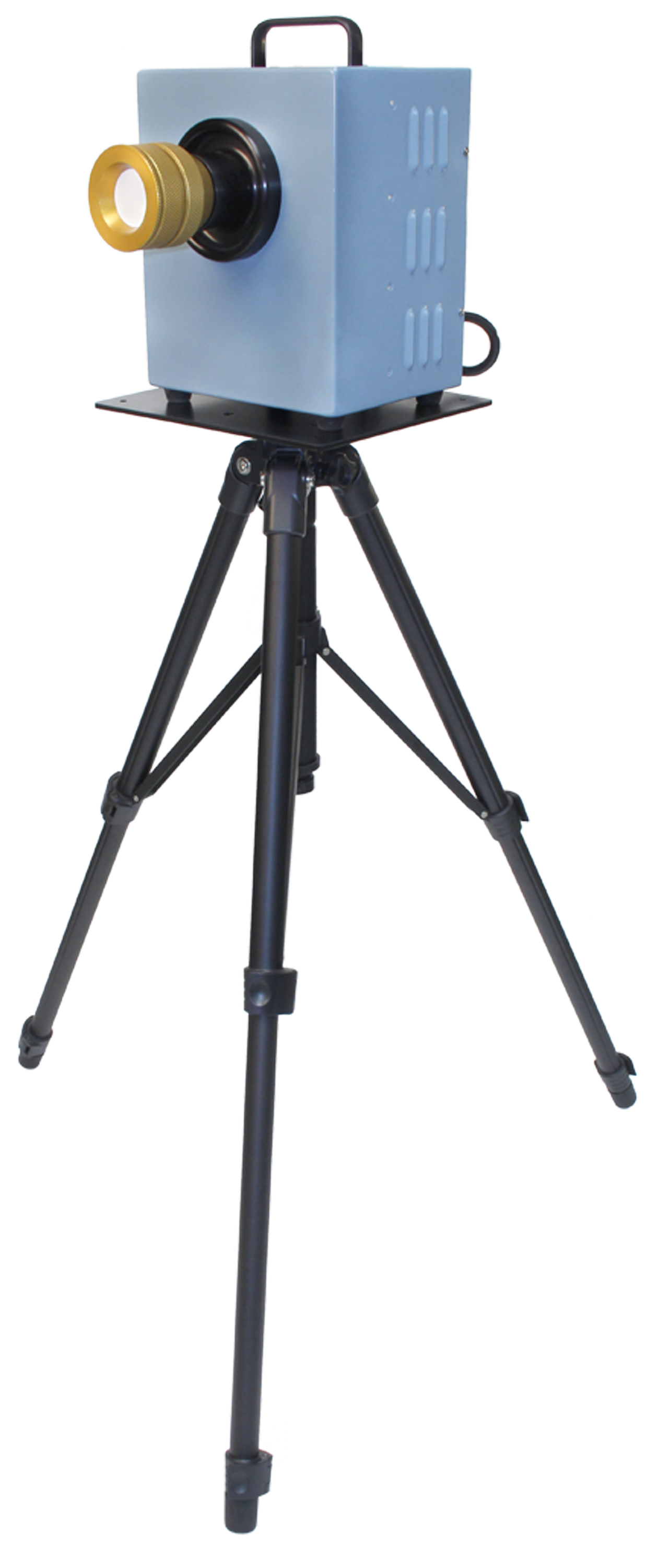

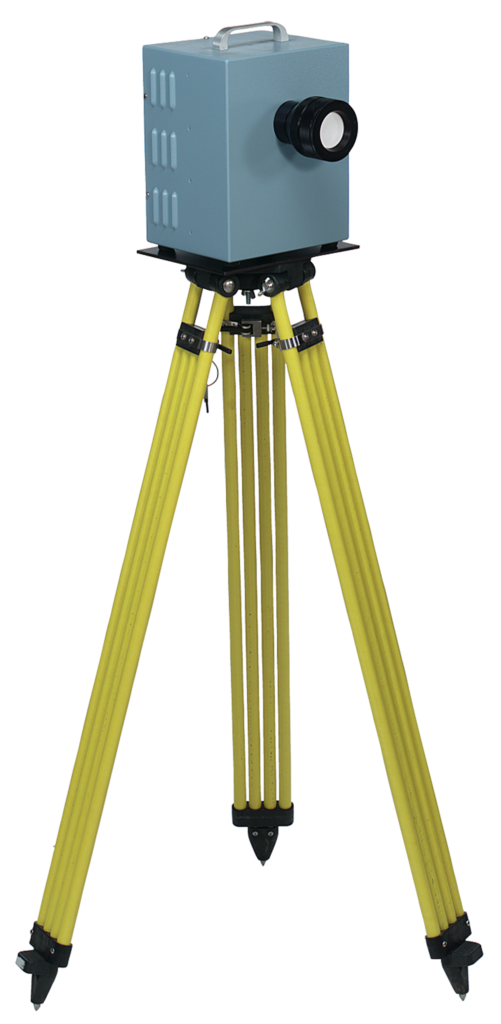

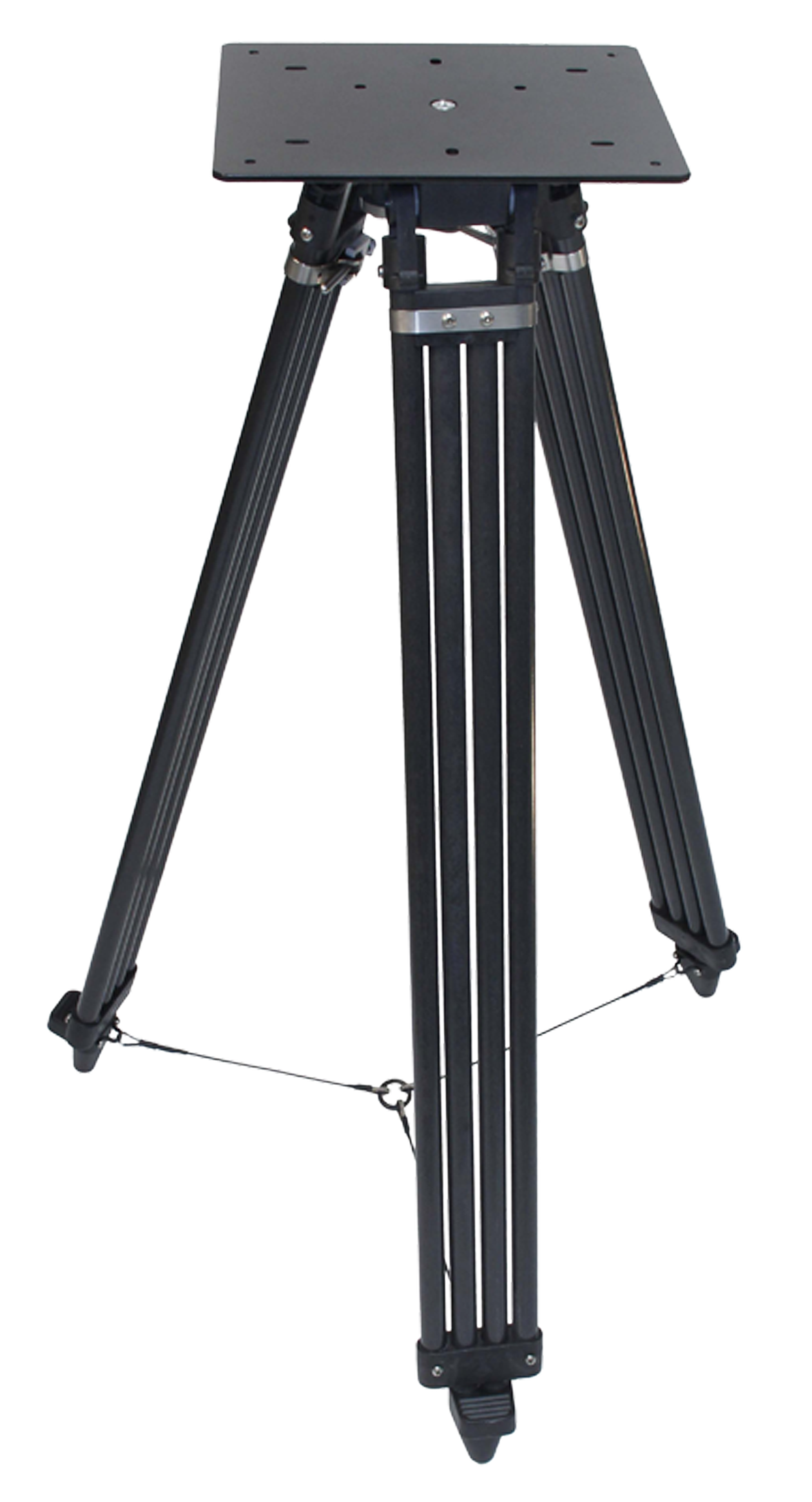

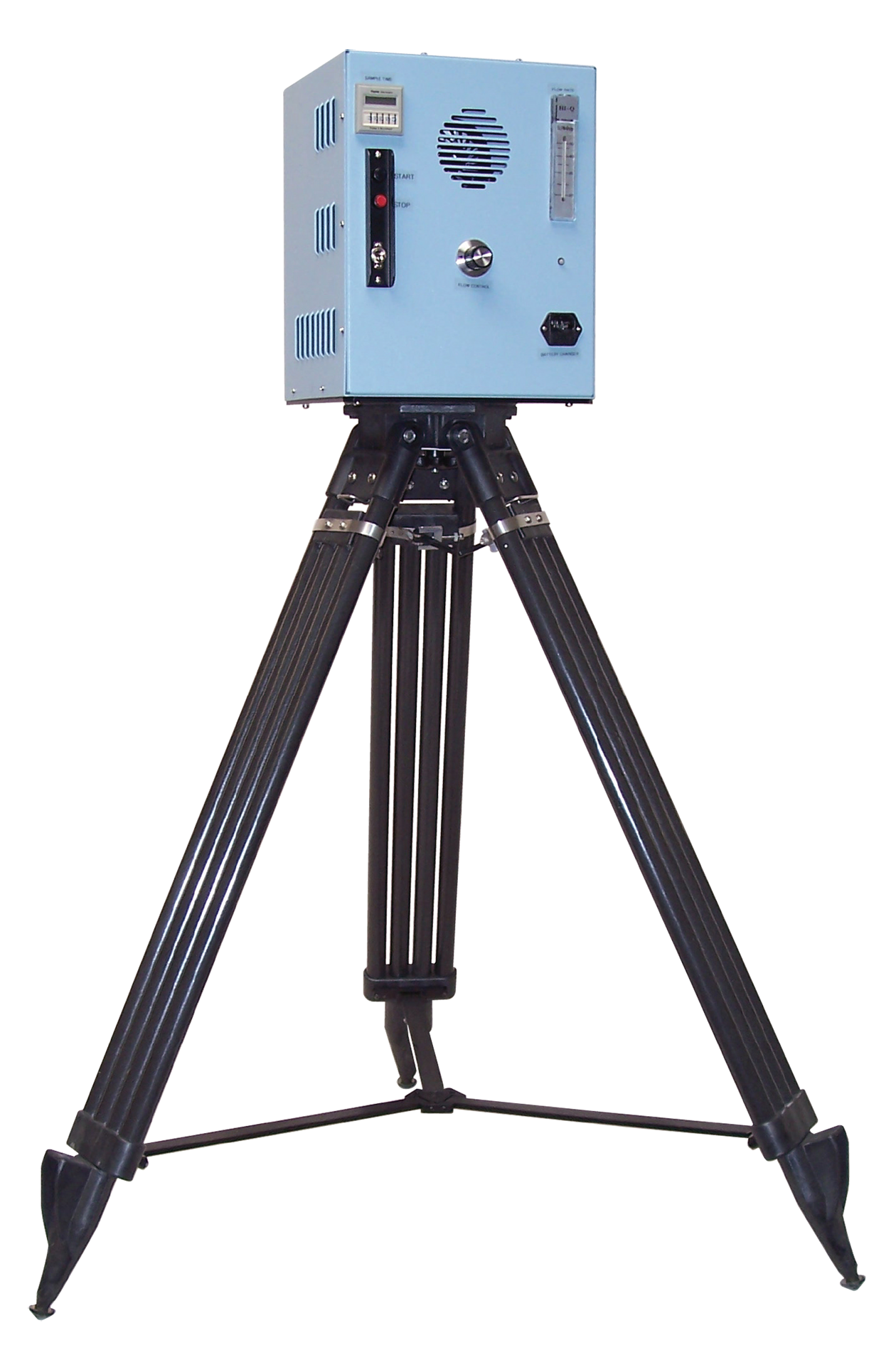

HI-Q’s TR-1, TR-1000B, & TR-2000A are Light, Medium, & Heavy Duty Air Sampling & Equipment Tripods capable of extended sampling heights over 58 inches. For lightweight instrumentation, 12 pounds or less, HI-Q recommends the TR-1. For tripod applications which must be capable of supporting up to a 15 pound workload capacity, HI-Q offers the TR-1000B. For Heavy Duty applications were the sample workload capacity may reach up to 50 pounds, HI-Q recommends the TR-2000A. All three of HI-Q’s TR-Series tripods include a 9” x 10¼” x ¼” black anodized aluminum instrument mounting plate. The mounting plate comes with a series of pre-punched hole configurations to fit a variety of commercially available air samplers.
