HI-Q precision machines stainless steel nozzle tips. The slip dimensions are based on standard stainless steel tubing. Specify the nozzle tip opening upon ordering by replacing the “XXX” in the order number.

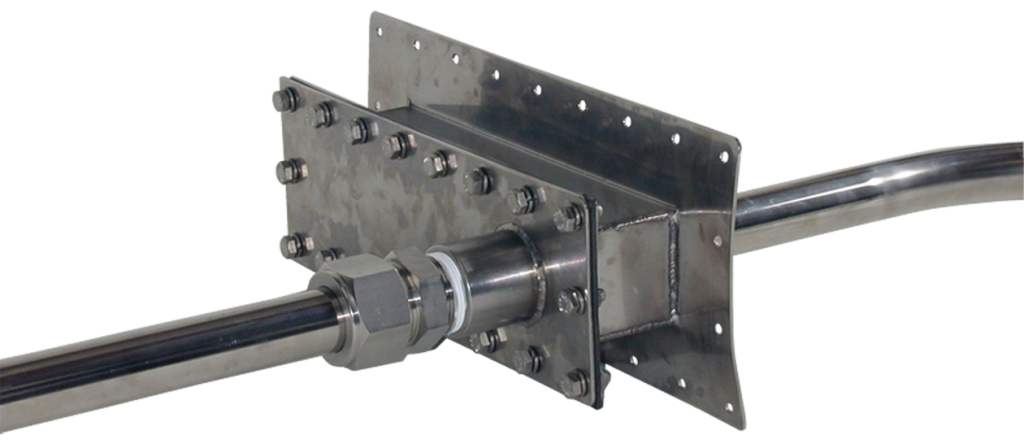

For Round Stacks or Ducts
Part Number | Stack Diameter | Probe Diameter |
SSFLNG-50-XX | -XX | ½” |
SSFLNG-75-XX | -XX | ¾” |
SSFLNG-100-XX | -XX | 1” |
SSFLNG-125-XX | -XX | 1¼” |
SSFLNG-150-XX | -XX | 1½” |
• XX=Exact Outer Diameter of Round Stack/Duct
• Add “-M” to P/N for Multi-Point Probe Applications
• Add “-S” to P/N for Shrouded, Single Point, or Gas Probe Applications
For Rectangular Stacks or Ducts
Part Number | Minimum Flat Surface Area | Probe Diameter |
SSFLNG-50 | 49 square inches | ½” |
SSFLNG-75 | 64 square inches | ¾” |
SSFLNG-100 | 64 square inches | 1” |
SSFLNG-125 | 64 square inches | 1¼” |
SSFLNG-150 | 64 square inches | 1½” |
• Add “-M” to P/N for Multi-Point Probe Applications
• Add “-S” to P/N for Shrouded, Single Point, or Gas Probe Applications
