Description
Product Highlights
- TSP HI-Vols
- 2-Stage, Brushed Blower
- Adjustable Flow Rate
- Elapsed, Resettable Timer
- Instantaneous Flow Reading
- For Continuous Use
- PM-10 Adaptable!
- Applicable to EPA’s 40 CFR, 50, App. B
Specifications
Motor/Pump: | Brushed, 2-Stage Centrifugal Blower. |

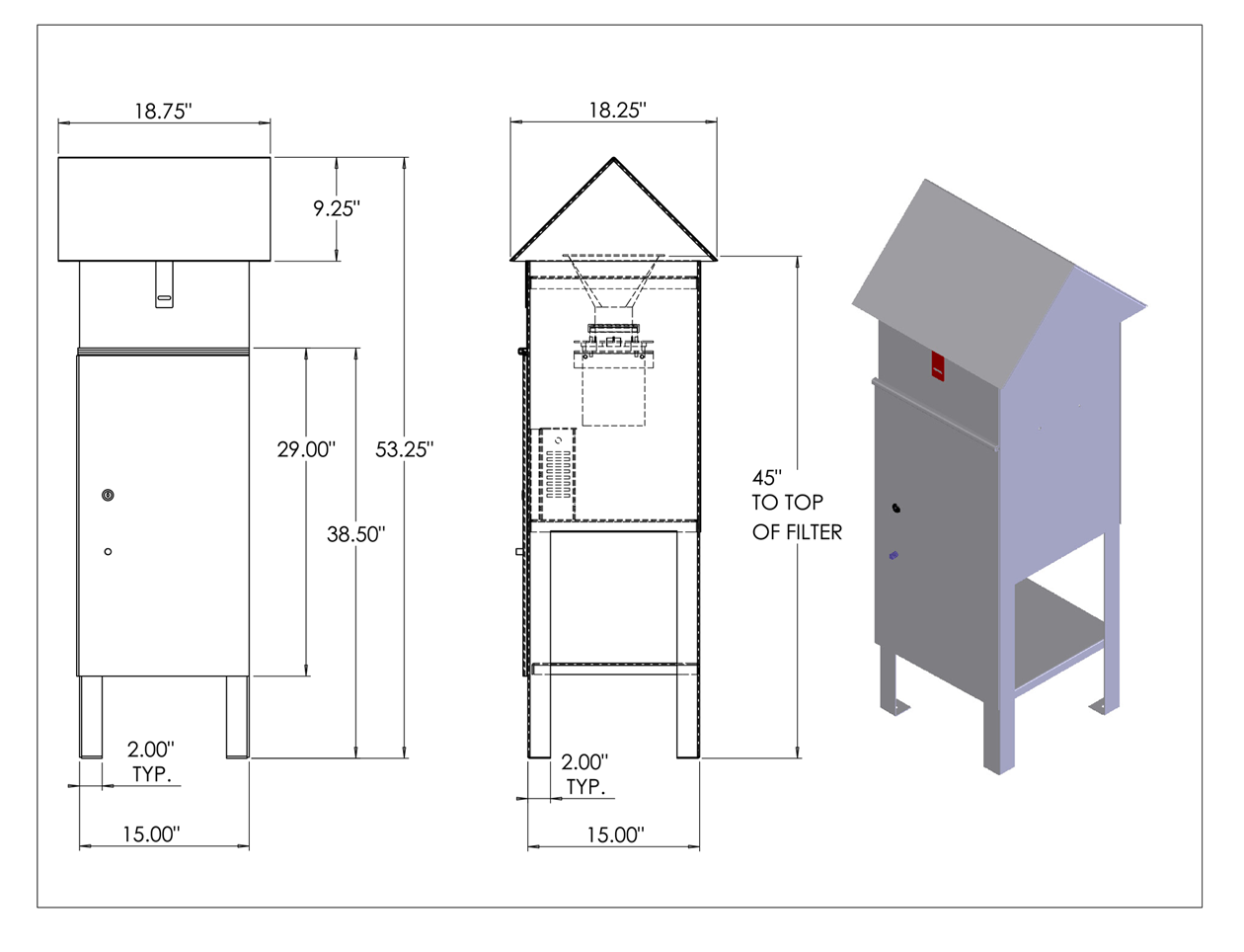

Housing: | Anodized Aluminum Outdoor Shelter with lockable control panel door and filter media roof. |
Calibrated Flow Range: (HVP-2000) | 10-50 CFM (CMM or LPM unit calibration upon request) |
Calibrated Flow Range: (HVP-2004BRL) | 5-30 CFM (CMM or LPM unit calibration upon request) |
Elapsed Timer: | Electronic, Resettable Hours & Tenths of Hours, LCD read out, 5 year internal battery. |
Unit Net Weight: | 57 lbs. |
Shipping Weights & Dimensions: |
20” x 20” x 50” @ 52 lbs. (Box 1) 18” x 18” x 24” @ 10 lbs. (Box 2) |
HVP-2000/4BRL Power Specifications: | 115 VAC, 50/60Hz.,10 Amp 230 VAC, 50/60Hz., 5.0 Amp |
Flow Calibrator: | See Air Flow Calibrators |
Filter Paper: | See Filter Paper For Air Sampling |
PM-10: | See Size Selective Inlets |
Options: | Modular Cabinet Design, Automatic Filter Shield, 8” x 10” Filter Cartridge, Continuous Flow/Pressure Recorder, Electronic & Mechanical Skip Timers & more. |
Description
This unit is built around a two stage centrifugal fan type brushed blower. The tangential discharge exhaust allows a higher maximum flow rate than other similar types of units. To reduce motor winding burn out, the HVP-2000 has a separate motor cooling fan. Brush-life will range between 600 to 1,000 hours depending on sampling mo- tor speed. Motor brushes can be changed in the field within 15 to 20 minutes with a screwdriver.
- For PM-10 sampling, see the Size Selective Inlets section of this catalog.
- For Filter Paper, see the Filter Media for Air Samplers section of this catalog.
- For Calibrators, see the Air Flow Calibrators, Adapters and Calibration Services section of this catalog.
- For Replacement Blowers, see the Air Sampling Accessories section of this catalog.
