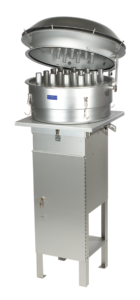

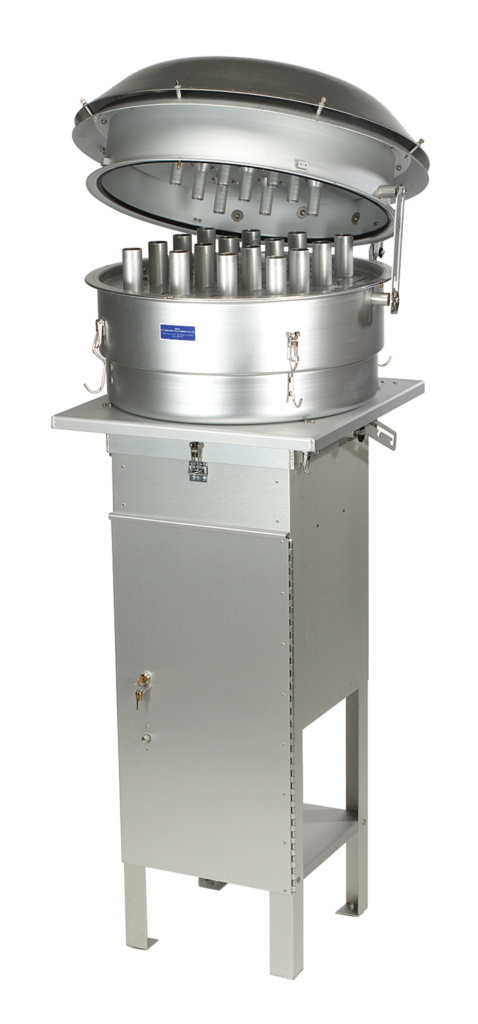

PM10 Series – Size Selective High Volume Air Sampling Systems



Product Highlights

  • Complete Systems Designed to Meet or Exceed U.S. EPA Federal Reference Method Performance Specifications for PM-10 Sampling
  • Three High Performance Systems to choose from
  • Brushless & Brushed Motor Driven 2 & 3-Stage Blowers Available
  • NIST Traceable Flow Calibration


Motor/Pump: PM10-5300AFC: Brushless, Electronic Control/3-Stage.
PM10-5200AFC: Brushless, Electronic Control/2-Stage.
PM10-4300AFC: Brushless, Electronic Control/3-Stage.
PM10-4200AFC: Brushless, Electronic Control/2-Stage.
PM10-3300BRL: Brushless, Mechanical Control/3-Stage.
PM10-3000BRL: Brushless, Mechanical Control/2 Stage.
PM10-2000: Brushed, Mechanical Control/2-Stage.
Housing Anodized Aluminum Outdoor Shelter with lockable control panel door. See HI-Q’s HVP-2000 & PM10-HEAD for overall  cabinet & Size Selective Inlet dimensions.
Calibrated Flow Range: 10-50 CFM (CMM unit calibration upon request). NIST Traceable Calibration.
Unit Net Weight: ~50 lbs. Cabinet Weight (avg.). 44 lbs. Size Selective Inlet. 20” x 20” x 50” @ 58 lbs. Cabinet Carton (avg.). 32” x 32” x 26” @ 52 lbs. Size Selective Inlet Carton.
Shipping Weight & Dimensions: 20” x 20” x 50” @ 58 lbs. Cabinet Carton (avg.).
32” x 32” x 26” @ 52 lbs. Size Selective Inlet Carton.
PM10-3-Stage Power Specifications: 115 VAC, 50/60 Hz.,10 Amp, 800 Watt
230 VAC, 50/60 Hz., 10.5 Amp, 1200 Watt
PM10-2-Stage Power Specifications: 115 VAC, 50/60Hz., 5.0 Amp, 250 Watt
230 VAC, 50/60Hz., 5.0 Amp, 400 Watt
PM10-2000 Power Specifications: 115 VAC, 50/60Hz., 9.0 Amp, 300 Air Watts
230 VAC, 50/60Hz., 4.6 Amp, 269 Air Watts
Elapsed Timer: (all units) Electronic, Resettable Hours & Tenths of Hours, LCD read out, 5 year internal battery.
Flow Totalizer: (PM10-4300& 4200 only) Resettable Standard Cubic Feet (total volume in cubic meters or liters upon request)
Flow Display: (PM10-4300 & 4200 only) Standard Cubic Feet per Minute (SCCM or SLPM display upon request)
Flow Calibrator: See Air Flow Calibrators
Filter Media: See Filter Media For Air Sampling Section
Optional Equipment: See “Options” listed above & Air Sampling Accessories


The EPA Clean Air Act of 1990 established a measuring standard to evaluate and monitor the health effects of thoracic inhaleable particles. The standard was set that in order for an environment to be healthy, in terms of these particles, it must have a concentration of less than 50 µg/m3 of particles with aerodynamic diameters less than 10 microns. The standard has been deemed PM-10, particulate size of 10um. Adherence to this standard is most important in industries and environments which produce a large mass of PM-10’s such as mills, mines, and biomedical facilities. HI-Q Environmental Products Company offers five complete PM-10 sampling systems designed to meet or exceed U.S. EPA Federal Reference Method performance specifications for the collection of PM-10 in ambient air. Each of the five systems incorporates the same size selective inlet mounted on top of any of HI-Q’s five High Volume, Outdoor, TSP Air Sampling Systems depicted on the previous pages. The inlet is designed to sample at a flow rate of 40 CFM.

Additional information


PM10-2000 (115 VAC), PM10-2000/230 (230 VAC), PM10-3300BRL (3-Stage) & PM10-3000BRL (2-Stage) (115 VAC), PM10-3300BRL/230 (3-Stage) & PM10-3000BRL/230 (2-Stage) (230 VAC), PM10-4300AFC (3-Stage) & PM10-4200AFC (2-Stage) (115 VAC), PM10-4300AFC/230 (3-Stage) & PM10-4200AFC/230 (2-Stage) (230 VAC), PM10-5300AFC (3-Stage) & PM10-5200AFC (2-Stage) (115 VAC), PM10-5300AFC/230 (3-Stage) & PM10-5200AFC/230 (2-Stage) (230 VAC)
