Description

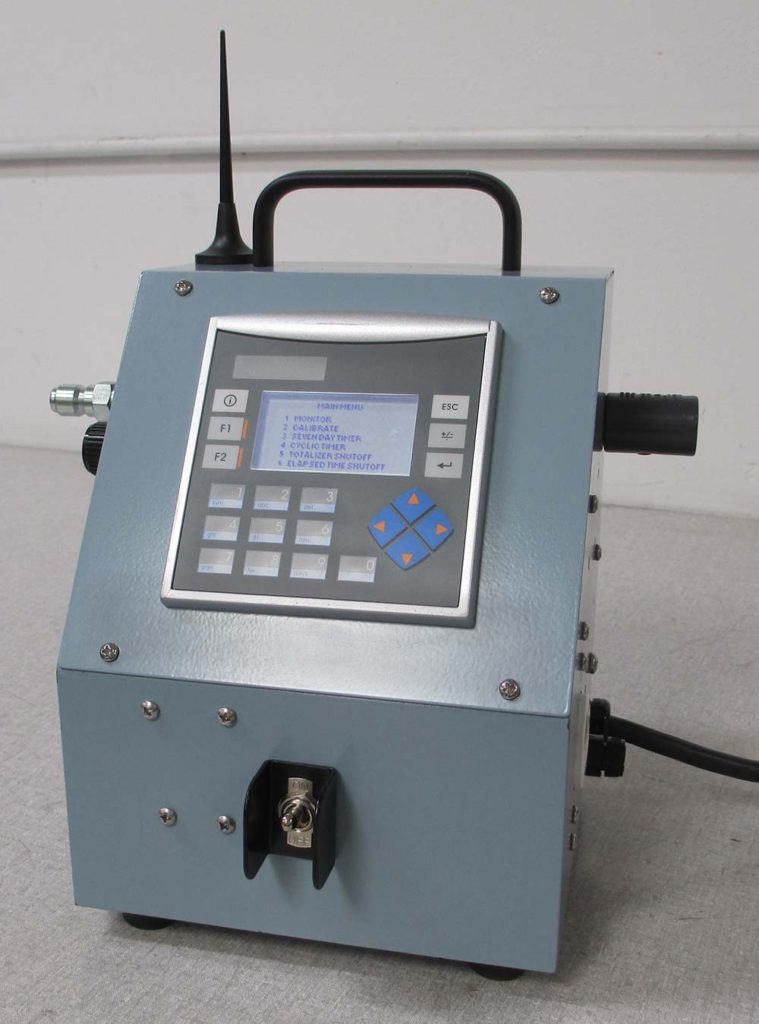

The “All-In-One” Digital Air Flow Meter & Controller (with Telemetry Capabilities)
- Flow Rate – Instantaneous Display of actual & standard flow rate (ACFM, ALPM, SCFM, SLPM)
- Flow Totalizer – Instantaneous Display of total
volume in actual and standard units
(ACF, AL, SCF, SL) - Temperature Sensor – Measurement
& display of temperature of inline air flow
(degrees F & C) - Barometric Pressure Sensor – Measurement
& display of barometric pressure
(in Hg & mm Hg) - Display – Illuminated graphic LCD screen
- GSM Modem programmed to send SMS
messages during power failure and
other user programmed events - Continuous Data Logging
- Removable Micro SD card
- Programmable timer & total volume
shut-off
Specifications:
| Barometric Pressure | 0 – 32 in Hg 0 – 812 mm Hg |
| Temperature | 30 -900 deg F -1 – 480 deg C |
| Air Flow Rate | Depends on calibration range |
| Measurement Accuracy | Flow Rate: ± 2% full scale Temperature: ± 2 deg F Barometric Pressure: ±0.2 in Hg @ 25 deg C |
| Power Requirements | 110 – 240 VAC |
| Overall Dimensions | 12” W x 6” D x 11” H |
| Weight | 10 lbs |
| Storage Temperature | -4 deg F to 158 deg F (-20 deg C to 70 deg C) |
| Operating Temperature | 14 deg F to 140 deg F (-10 deg C to 60 deg C) |
| Calibration | Factory calibration is recommended once per year |
Through the implementation of a barometric pressure sensor, thermocouple, precision machined venturi tube and differential pressure sensor, HI-Q’s DFMC-SD-SMS series microprocessor-based air flow calibrators are used to measure, record & display instantaneous flow rate, temperature and barometric pressure. Through onboard calculations, the user may also select to display the flow rate and total volume in actual or standard units. The processor also includes a removable micro SD card that logs the data at a user-settable frequency. These logs can be downloaded to a PC as a csv file (comma separated values). The processor and an onboard GSM modem (activated on user’s cellular account) is configured to send SMS messages during power failure and at other user-programmable events such as low-flow rate, and high-flow rate. This unit can be configured for existing air sampling stations.
